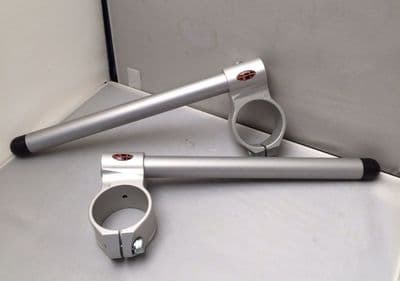

CNC Machined by us here in Norfolk from billet 6082 aluminium & anodised silver as standard (some sizes are also available in black anodise), giving a product that is both attractive & durable. The clamp is fitted using an M8 high tensile cap head bolt & the tube using an M6 bolt.
The tube has a solid machined bar end made from durable black polyacetal which adds to the crash protection & a retaining groove to register on the fixing screw for safety.
Sizes range from 35mm to 55mm (stock depending) covering most popular bikes.
Spare clamps & tubes can be supplied separately as required. (see separate size chart for applications).
Tube length is 270mm as standard (ACT270) & is 22mm in dia.
The drop angle of these clip ons is approx 7 degrees.
Recommended torque settings:
M8 PINCH BOLT = 23 Nm (16.5 lb-ft)
M6 PINCH BOLT = 10 Nm (7.0 lb-ft)
